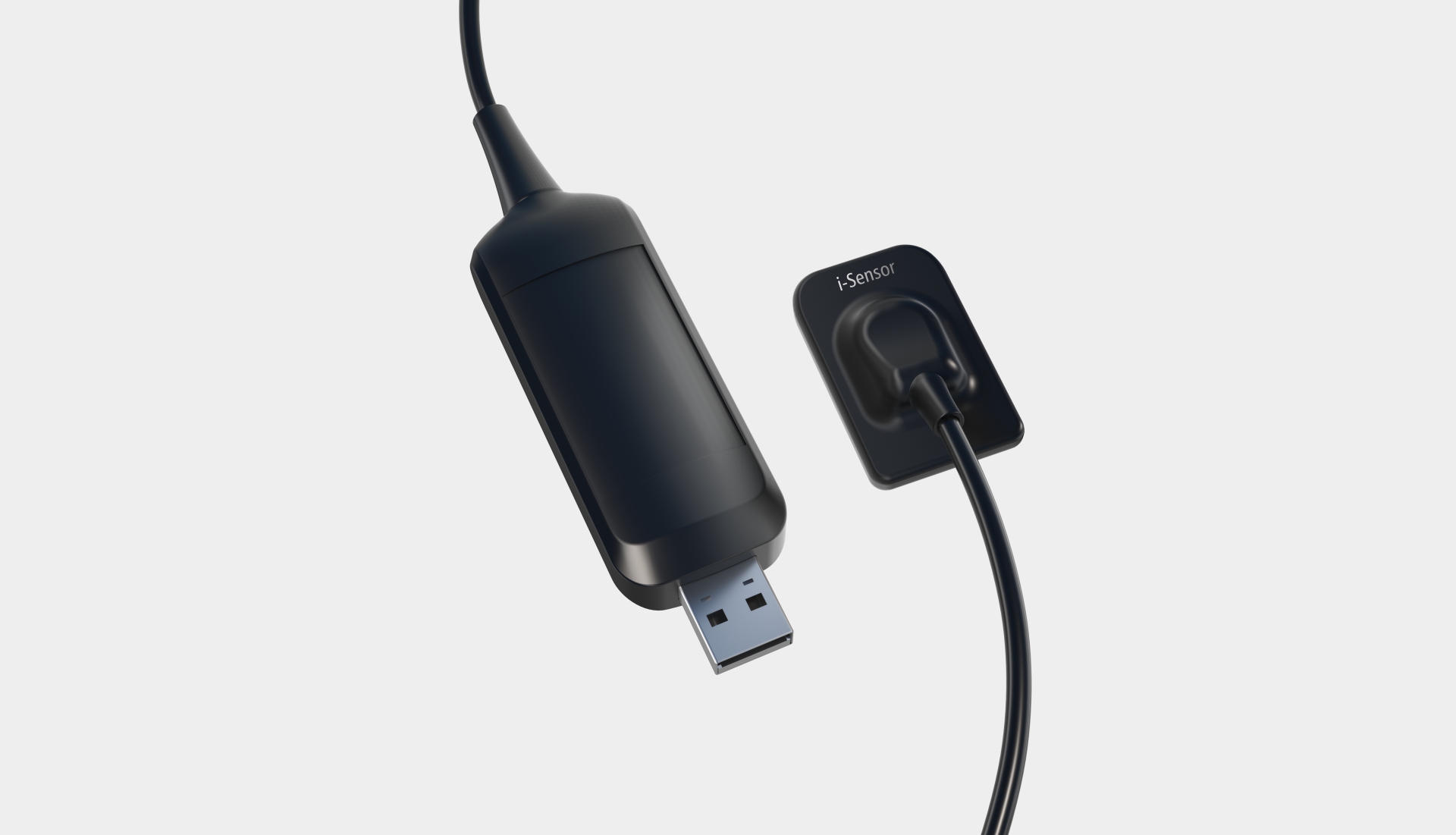

    Woodpecker RVG i Sensor Size – 1 (Compatible With Windows only)

    Original price was: ₹95,000.00.Current price is: ₹54,399.00.

    Add to wishlist
    Compare
    Description

    Woodpecker RVG i Sensor Size – 1 (Compatible With Windows only)

    Woodpecker RVG i Sensor, a revolutionary intraoral imaging solution that combines efficiency and affordability. With its user-friendly software and improved workflow efficiency, it enhances diagnosis, treatment, and treatment planning processes. This centralized imaging hub manages all patient images, including intra- and extra-oral radiographs and photographs. The sensor captures X-ray radiation and instantly converts it into high-quality digital data for immediate viewing. Trust in Woodpecker’s legacy of imaging excellence and enjoy exceptional image capture with this easy-to-use solution for all your intraoral imaging needs.

    Indications:

    • Dental Diagnostics: The Woodpecker RVG i Sensor Size – 1 is used for capturing high-quality intraoral digital radiographs to aid in the diagnosis of dental conditions and treatment planning.
    • Endodontics: The RVG i Sensor Size – 1 is valuable for capturing images during root canal treatments to visualize the root canal anatomy and monitor treatment progress.
    • Prosthodontics: It assists in the evaluation of tooth morphology, occlusion, and fit of dental prostheses such as crowns, bridges, and implants.
    • Orthodontics: The sensor is used to capture images for orthodontic treatment planning, assessing tooth alignment, and monitoring progress during treatment.
    • Oral Surgery: It aids in the visualization of impacted teeth, pre-surgical planning, and post-surgical evaluations.
    • Implantology: The RVG i Sensor Size – 1 is used to assess bone density and evaluate implant placement, ensuring precise positioning for successful implant procedures.
    • Periodontics: It assists in the evaluation of periodontal health, detecting bone loss, and assessing the effectiveness of periodontal treatments.
    Features

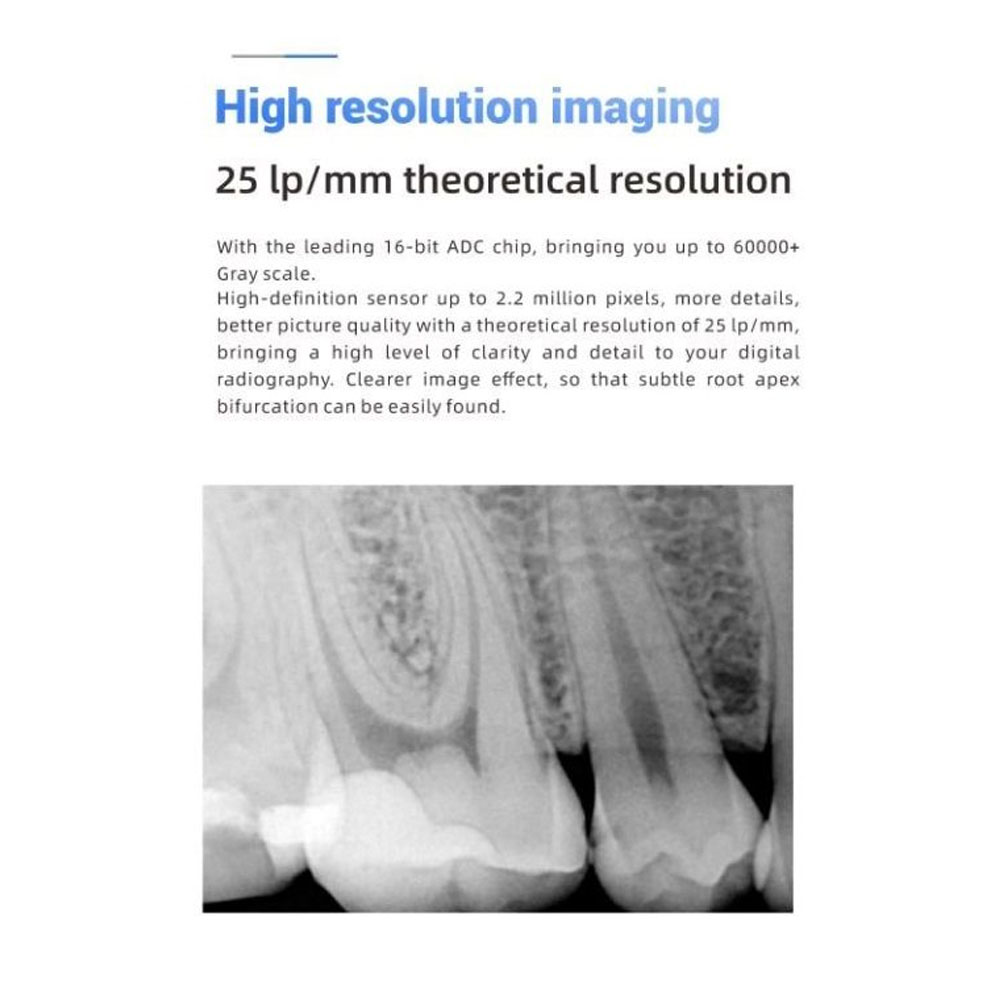

    • High-resolution imaging – 25lp/mm theoretical resolution
    • C Mos Technology

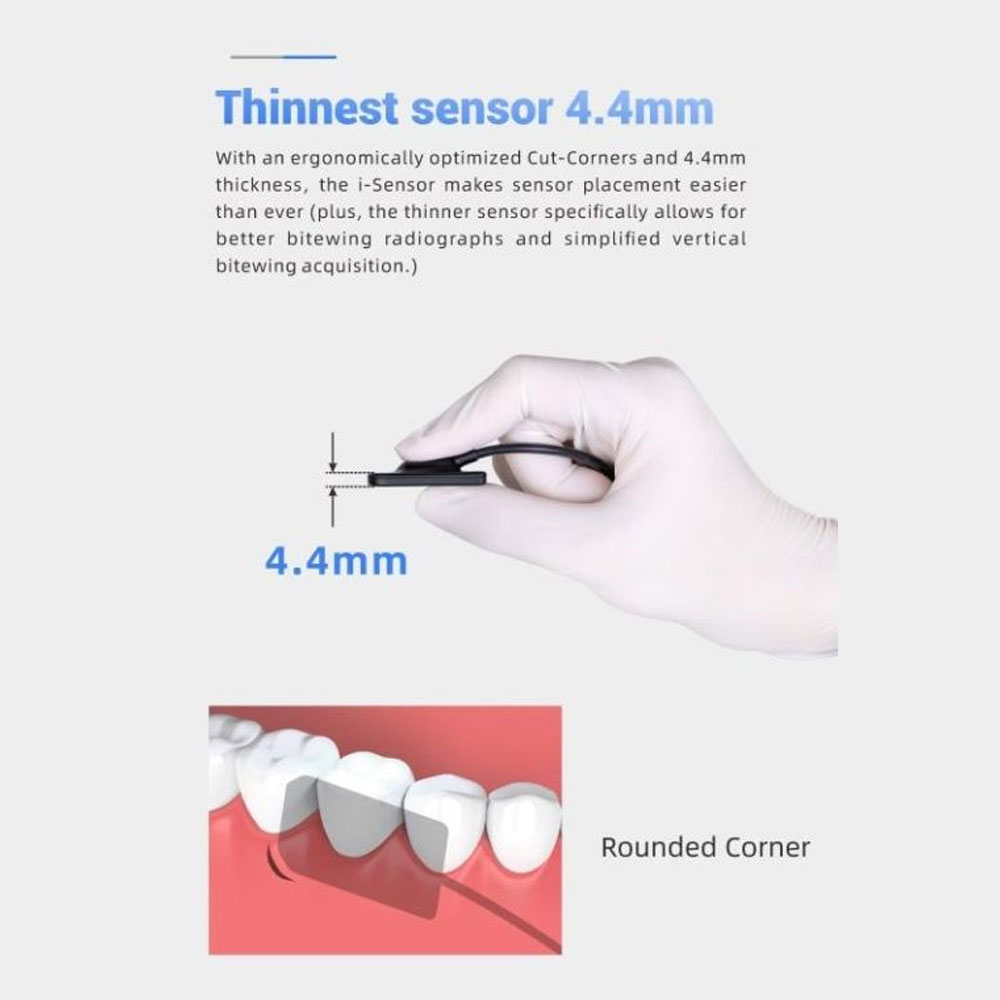

    • Thinnest sensor 4.4mm
    • USB cable – 2.7m

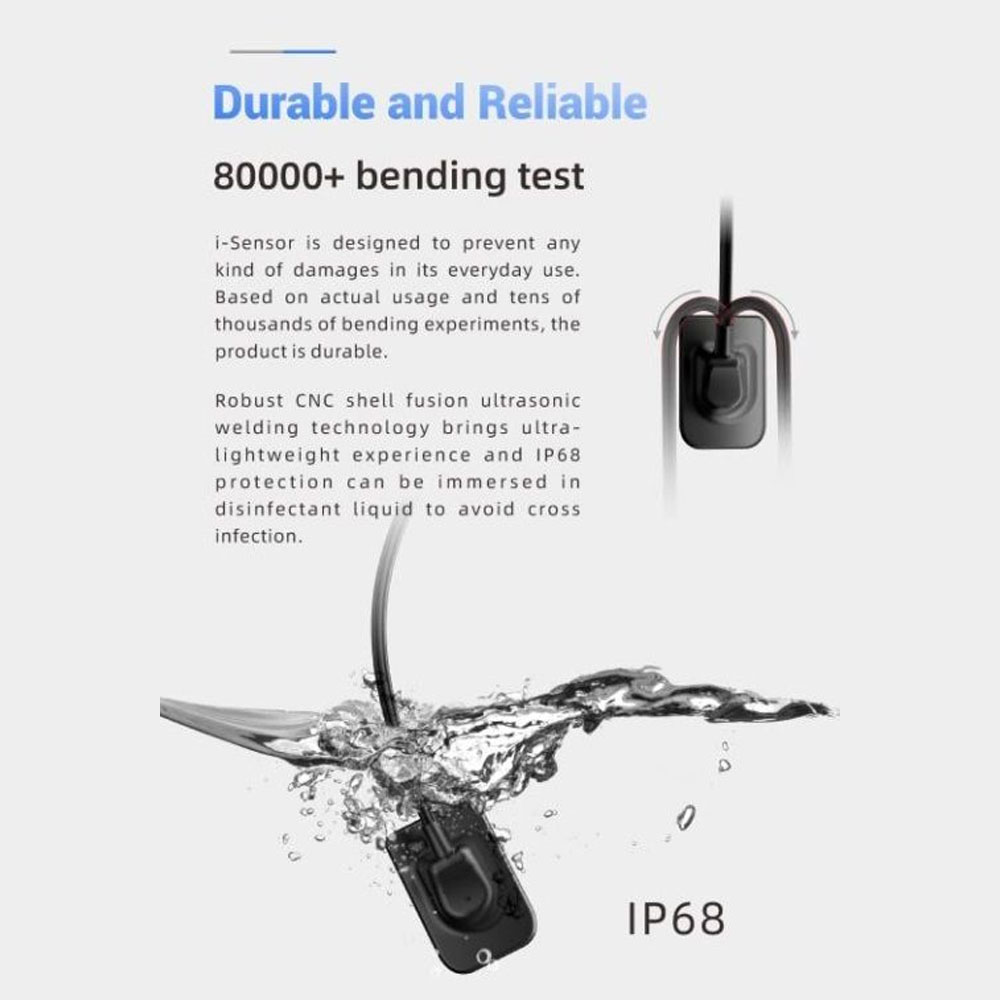

    • Durable and reliable: 80000+ bending test & IP68 protection rating

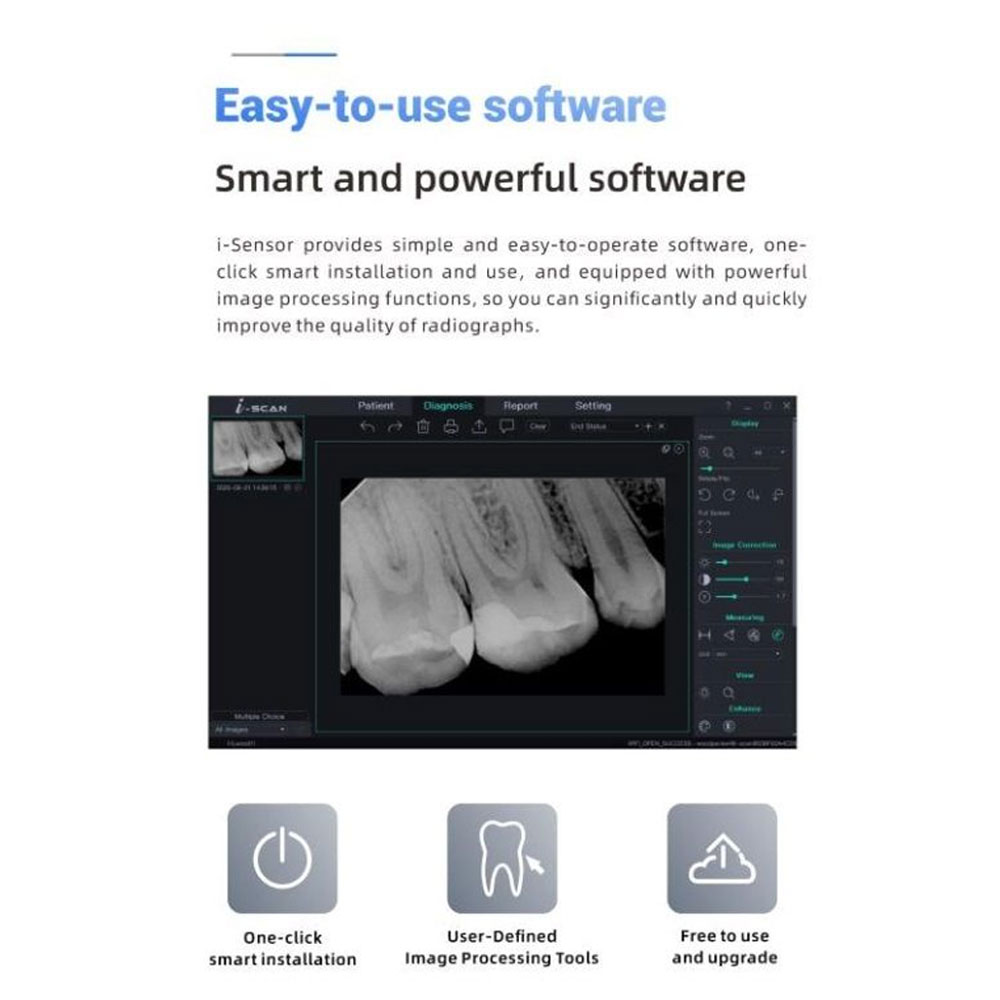

    • Smart and powerful software
    • Curved Edges to Avoid Patient Injury
    • Highly Flexible Cable
    • It has a Twain option. and the server function.
    • Now there is no limit for computers connected to the software license.
    • I Sensor RVG serves as a highly effective aid throughout the diagnosis, treatment, and treatment planning process. Easy-to-use software, with workflow efficiency improvements.
    Packaging
    Reviews (0)
    0 reviews
    0
    0
    0
    0
    0

    Reviews

    Clear filters

    There are no reviews yet.

    Be the first to review “Woodpecker RVG i Sensor Size – 1 (Compatible With Windows only)”

    Your email address will not be published. Required fields are marked *

    You have to be logged in to be able to add photos to your review.

    Key Specifications
    • Power adapter unit: 5V/USB interface
    • Effective area: 20*30mm(H1)
    • Pixel matrix size: 1000*1500(H1)
    • Pixel size: 20μm
    • Effective resolution: >8lp/mm
    • Specifications: 38.5*25*4.4mm(H1)
    • Weight: 118g(H1)
    • Detector Technology: APS CMOS
    • True Resolution: 20lp/mm
    • Environment temperature: 5℃～ 40℃
    • Relative humidity: 30% ～ 75% 1.9.3
    • Atmospheric pressure：70kPa ～ 106kPa
    Direction To Use

    Installation:

    Check System Requirements:

    • Ensure that your computer meets the system requirements specified by the manufacturer. Typically, these include the Windows operating system and specific hardware specifications.

    Software Installation:

    Connect the Sensor:

    • Connect the Woodpecker RVG I Sensor Size – 1 to your computer using the provided USB cable.

    Power On the Sensor:

    • Connect the power adapter unit to the sensor and ensure it’s powered on.

    Driver Installation:

    • The Windows operating system should automatically detect the sensor. If not, you may need to install drivers provided by Woodpecker.

    Calibration (if required):

    • Follow any calibration procedures specified in the user manual or software instructions.

    How to Use:

    Open Imaging Software:

    • Launch the imaging software on your computer.

    Patient Information:

    • Enter or select patient information within the software.

    Position the Sensor:

    • Place the Woodpecker RVG i Sensor Size – 1 intraorally in the desired position.

    Capture Images:

    • Follow the on-screen instructions to capture intraoral digital radiographs. This typically involves triggering the X-ray exposure while the sensor is in the patient’s mouth.

    Image Review:

    • Review the captured images immediately within the software. You can zoom in, adjust contrast, and perform other image enhancements.

    Save and Store Images:

    • Save the images to the patient’s file or the central image repository. The software may provide options for organizing and managing patient data.

    Export or Print (if necessary):

    • Export images for referral or consultation purposes. Some systems also allow you to print hard copies if needed.
    • Maintenance:
    • Follow any recommended maintenance procedures for the sensor to ensure its longevity and optimal performance.



    Download Product Manual
    Service & Support
    • Manufacturer/Importer warranty for Woodpecker RVG i Sensor 5 year and as applicable for this product.
    • Service and Warranty are handled by the manufacturer/importer directly for this product
    • Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
    • Dentalkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
    • Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
    • The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or does not tamper as the case may be.
