    Woodpecker RVG i Sensor Size – 2 (Compatible With Windows Only)

    Original price was: ₹100,700.00.Current price is: ₹59,915.00.

    Add to wishlist
    Compare
    Description

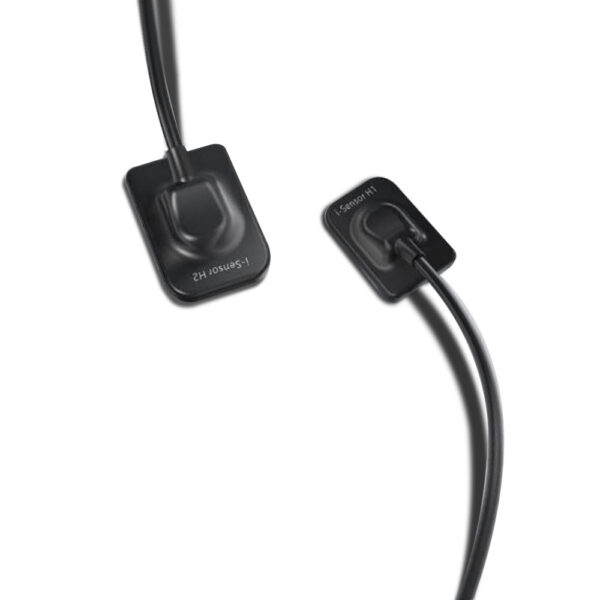

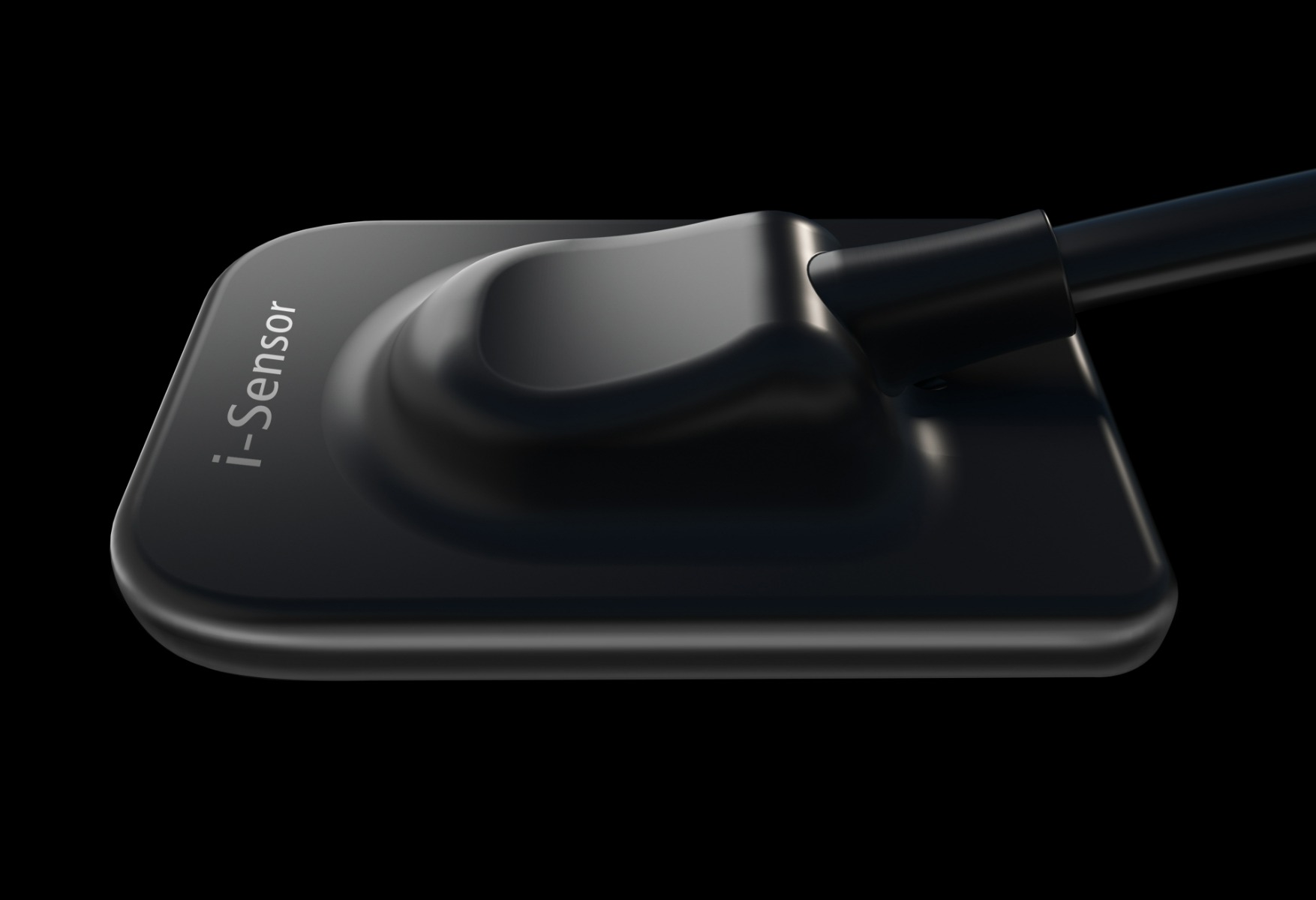

    Woodpecker RVG i Sensor Size – 2 (Compatible With Windows Only)

    Woodpecker RVG i Sensor, a revolutionary intraoral imaging solution that combines efficiency and affordability. With its user-friendly software and improved workflow efficiency, it enhances diagnosis, treatment, and treatment planning processes. This centralized imaging hub manages all patient images, including intra- and extra-oral radiographs and photographs. The sensor captures X-ray radiation and instantly converts it into high-quality digital data for immediate viewing. Trust in Woodpecker’s legacy of imaging excellence and enjoy exceptional image capture with this easy-to-use solution for all your intraoral imaging needs.

    Indications:

    • Dental Diagnostics: The Woodpecker RVG i Sensor Size – 2 is used for capturing high-quality intraoral digital radiographs to aid in the diagnosis of dental conditions and treatment planning.
    • Endodontics: The RVG i Sensor Size – 2 is valuable for capturing images during root canal treatments to visualize the root canal anatomy and monitor treatment progress.
    • Prosthodontics: It assists in the evaluation of tooth morphology, occlusion, and fit of dental prostheses such as crowns, bridges, and implants.
    • Orthodontics: The sensor is used to capture images for orthodontic treatment planning, assessing tooth alignment, and monitoring progress during treatment.
    • Oral Surgery: It aids in the visualization of impacted teeth, pre-surgical planning, and post-surgical evaluations.
    • Implantology: The RVG i Sensor Size – 2 is used to assess bone density and evaluate implant placement, ensuring precise positioning for successful implant procedures.
    • Periodontics: It assists in the evaluation of periodontal health, detecting bone loss, and assessing the effectiveness of periodontal treatments.
    Features
    • High-resolution imaging – 25lp/mm theoretical resolution
    • C Mos Technology
    • Thinnest sensor 4.4mm

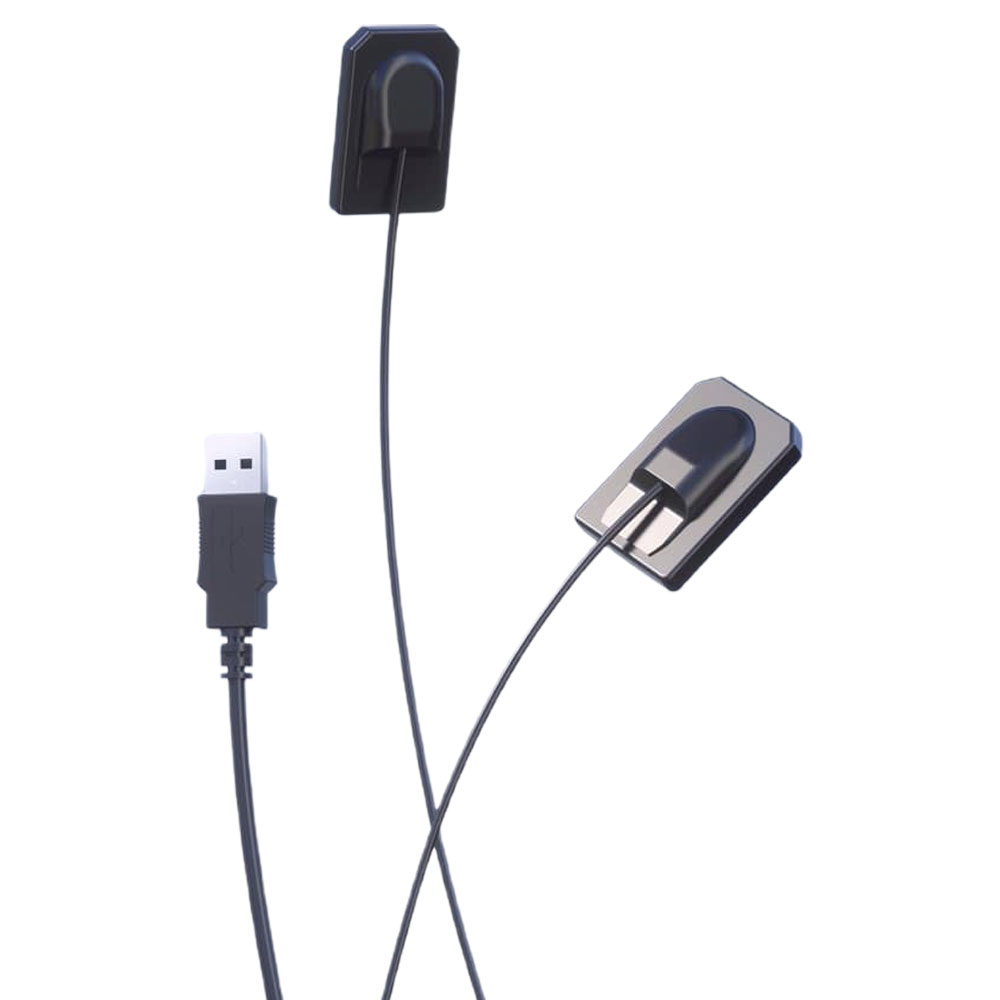

    • USB Cable – 2.7m long
    • Durable and reliable: 80000+ bending test & IP68 protection rating

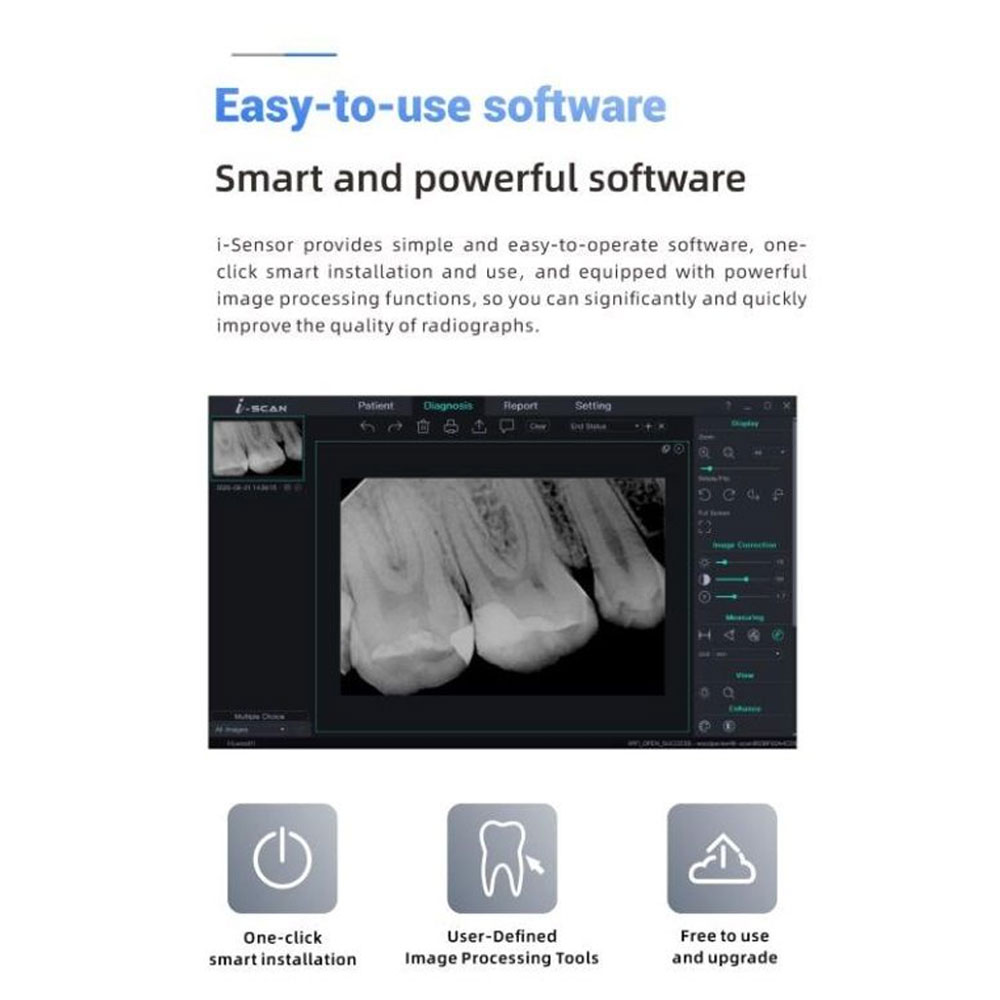

    • Smart and powerful software
    • Curved Edges to Avoid Patient Injury
    • Highly Flexible Cable
    • It has a Twain option. and the server function.
    • Now there is no limit for computers connected to the software license.
    • I Sensor RVG serves as a highly effective aid throughout the diagnosis, treatment, and treatment planning process. Easy-to-use software, with workflow efficiency improvements.
    Packaging
    • 1 x Rvg i Sensor
    • 1 x Disposable protective bag
    • 1 x Sensor fixer
    • 1 x Sensor silicone sleeve
    • 1 x Anti-counterfeiting query label
    • 1 x U disk
    • 2 x Fixing screw
    • 2 x Rubber Stopper
    • 1 x Qualified certificate
    • 1 x Warranty card
    • 1 x Instruction manual
    Reviews (0)
    0 reviews
    0
    0
    0
    0
    0

    Reviews

    Clear filters

    There are no reviews yet.

    Be the first to review “Woodpecker RVG i Sensor Size – 2 (Compatible With Windows Only)”

    Your email address will not be published. Required fields are marked *

    You have to be logged in to be able to add photos to your review.

    Key Specifications
    • Effective area: 26*36mm(H2)
    • Pixel matrix size: 1300*1800mm(H2)
    • Pixel size: 20μm
    • Effective resolution ＞ 8lp/mm
    • Specifications: 40.0*31.0*4.4mm(H2)
    • Weight: 158g(H2)
    • Detector Technology: APS CMOS
    • Environment temperature: 5℃～ 40℃
    • Relative humidity: 30% ～ 75% 1.9.3
    • Atmospheric pressure：70kPa ～ 106kPa
    • Windows® Configuration
      Operating system Windows® 7 or above
      Processor Intel® Core 2
      Memory 2 GB or above
      Hard disk 320 GB or above
      USB port 4 high-speed USB 2.0 ports
      Display board Nvidia chip graphics card or ATI discrete graphics card
      USB chip Intel or NEC® / RENESAS®
      Display resolution 1280 x 1024
    Direction To Use

    How to Installation:

    Connect the Sensor:

    • Plug the USB cable of the Woodpecker RVG i Sensor into an available USB port on your Windows computer.

    Power On the Sensor:

    • Ensure the power adapter is connected if required.
    • Power on the sensor according to the manufacturer’s instructions.

    Driver Installation:

    • Windows should automatically detect the new hardware and attempt to install the necessary drivers.
    • Follow any on-screen prompts to complete the driver installation.
    • Alternatively, use the drivers provided by Woodpecker, if any, for a manual installation.

    Download Software:

    Install Software:

    • Run the software installer.
    • Follow the on-screen instructions to complete the installation process.
    • Ensure that the software is compatible with your Windows version.

    Configure Software:

    • Launch the software after installation.
    • Configure any necessary settings, such as image storage locations, patient information, and imaging preferences.

    How to Use:

    Calibrate the Sensor:

    • Before first use, follow the calibration procedure provided by Woodpecker to ensure accurate imaging.

    Position the Sensor:

    • Position the sensor in the patient’s mouth as required for the specific dental imaging procedure.

    Capture Images:

    • Use the Woodpecker software to capture intraoral digital radiographs.
    • Follow on-screen instructions for capturing images, adjusting settings, and ensuring proper exposure.

    Save and Manage Images:

    • Save the captured images to the designated storage location.
    • Utilize the software’s management features to organize patient files and images.

    Specialized Applications:

    • Depending on your dental specialty, use the sensor for endodontics, prosthodontics, orthodontics, oral surgery, implantology, or periodontics as needed.



    Download Product Manual
    Service & Support
    • Manufacturer/Importer warranty for Woodpecker RVG i Sensor 5 year and as applicable for this product.
    • Service and Warranty are handled by the manufacturer/importer directly for this product
    • Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
    • Dentalkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
    • Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
    • The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or does not tamper as the case may be.
